Fast, Mobile, Compact

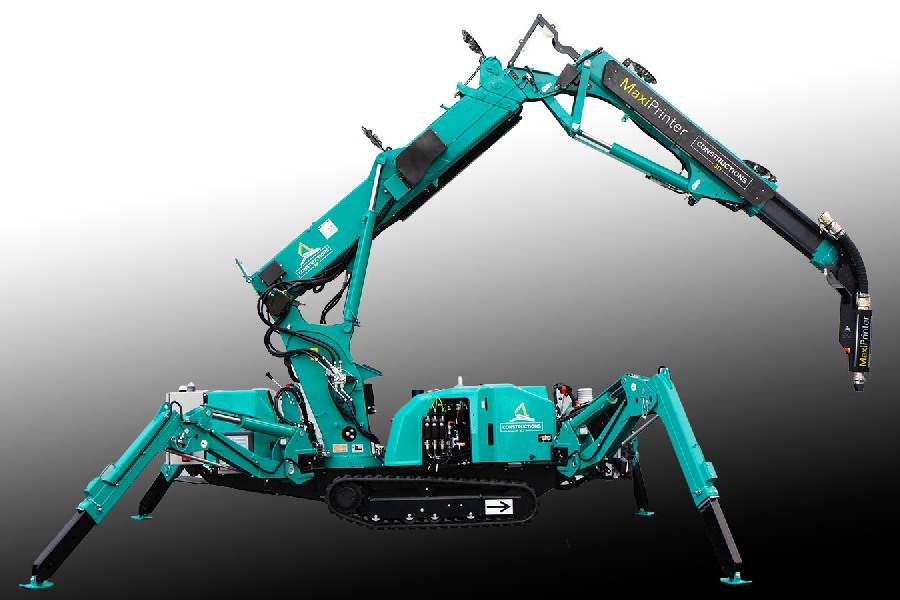

Geopolymer International’s sister company, Sustainable Construction Solutions, is proud to announce its exclusive North American distributorship of the MaxiPrinter. Our strategic partnership with Constructions-3D leverages the MaxiPrinter’s advanced capabilities, combining it with Geopolymer International’s expertise in geopolymer chemistry, to deliver unparalleled construction solutions
MaxiPrinter Features
Fast
- MaxiPrinter Deployment: 5 minutes, one person + installation of hoses, pump, and connections: 25 minutes, 2 people
- Calibration (printing file to Gcode): 10-30 minutes
- Printing Speed: Up to 200 mm/s, typical: 100-150 mm/s
- Cleaning: 30 minutes, two people
Mobile
- Movement on tracks at 2 km/h
- Lightweight: 2.8 tons
- Ability to print from one position, fold up, move, unfold and print at a second position
-> infinite printing area - Small turning radius, almost rotates in place
Compact
- Fits through a door after printing is completed. Elevator, container.. fits in a staircase hopper to be carried onto the upper slab and print the next floor
- A single 20-foot container (compact, easy to transport, project)
- Width: 850 mm
- Length: 3010 mm
- Height: 1990 mm
Precise
- Accuracy within 1 cm
- Repeatability level of 1 mm (precision errors are the same for subsequent layers)
- 3D printed nozzle, possibility of infinite nozzle shapes, rectangular, round, etc., the nozzle can be rotating or not
- Path correction every 33 ms
- Unlimited control: mastery of material consistency and printing speed in real time
Economical
- No crane needed
- No gantry to install
- No formwork
- No console
- Savings on insulation costs (no need to install rails + fiberglass.. create a cavity and spray the bulk insulation
- Savings on the volume of concrete that makes up the wall. Example: 30 cm wall 3D printed (cord thickness: 6 cm): reduces the amount of concrete by 60% compared to a solid 30 cm wall (calculation: 0.0620.88+0.06*0.3=0.12 <- 3D printed wall, 0.3 <- solid wall… 0.3 – 60% = 0.12 m^3)
- 1 pilot/operator + 1-2 people
All Terrain
- Outdoor/Indoor Sites
- Installation in hard-to-access environments (drivable ground)
- Printing directly on the ground
- Robust and solid, withstands the demands of the most challenging sites
- Maneuverable in confined spaces (reduced turning radius thanks to tracks)
- Can move on tracks on a maximum slope of 15°
- Printing possible on uneven terrain with legs not at the same level -> the chassis adapts and is perfectly level despite the terrain
Controllable
- More than twenty sensors visible on the control interface-> Material pressure, temperature, humidity, oil temperature, layer time, water flow…-> useful for maintenance and post-print feedback-> can act accordingly: e.g., if material pressure is too high, increase the water amount in the material
- Presence of a camera to monitor the progress of the print
- Ability to configure alerts (checkpoints) during printing
- Calibration assistant for files with an intelligent system for capturing known points on the slab
- Perfect connectivity with the pump, interactions with it from the control screen
- Track the progress of the print, remaining time, amount of material used, etc.
- Ability to pause, stop printing and resume the next day where it stopped
- Presence of portable emergency stops + many others, especially on the control screen, on the nozzle head, etc. -> very safe machine
- Dedicated slicer perfectly adapted to our machines
- Our software evolves and the version is updated for free and for life
- Efficient remote customer service (Machine connected for updates and maintenance)
